    Movable Lithium Battery Pack Home Energy Storage Battery System Customized Solutions Wall Mounted 15kwh 310ah Lifepo4 Grade A Solar

    Ask Lasest Price
    Brand Name : Vbrite
    Model Number : VB-WM512300
    Payment Terms : L/C,T/T,D/A,D/P,Western Union
    Delivery Time : 10~15Day
    • Product Details
    • Company Profile

    Movable Lithium Battery Pack Home Energy Storage Battery System Customized Solutions Wall Mounted 15kwh 310ah Lifepo4 Grade A Solar


    FEATURES


    • Touch LCD Display.
    • Built in intelligent BMS.
    • RS485 / RS232 / CAN.
    • Designed for a lifespan of 15 years, with a maximum of 6000 cycles.
    • Maximum support for 6 PCS in parallel.
    • Compatible with Multi-brand inverters.


    PARAMETER

    MODEL
    VB-WM512300
    COMPREHENSIVE PARAMETERS
    Battery Voltage
    40V~58.4V
    Storage Capacity
    15360Wh
    Colour
    White
    External Dimension
    900*570*420mm
    Warranty
    5 Years
    BATTERY MODULE PARAMETERS
    Type of batter
    LFE
    Capacity
    310Ah
    Battery Cycle Life
    6000
    Modular Structure
    1P16S
    OVERALL CHARACTERISTIC
    Capacity for assembled cell discharging by 0.2C
    ≥300Ah
    Standard Charge Condition
    Charge with 0.5C constant current and 58.4Vconstant voltage,
    charge to 58.4V,continue charging till current declineto ≤0.01C
    Maximum Charge Current
    200A
    Maximum Discharge Current
    Internal Resistance
    ≤80mΩ Assemblage Impedance
    Cycle Life
    ≥6000@25℃,80%EOL
    Recommend Charging Temperature
    0℃~50℃
    Recommend Discharging Temperature
    -15℃~50℃
    Storage Temperature
    Humidity
    0-90%
    Maximum Altitude
    3000m
    FUNCTIONAL CONFIGURATION
    LED Panel (Light Emitting Diode)
    YES
    Communication
    RS485,CAN,RS232
    IP Rating
    IP21
    Parallel Capability
    Up to 6 units
    LED Power Display
    Traffic Light Display
    BMS Control
    Control Battery Performance
    PACKAGE
    N.W.
    129KGS
    G.W.
    146.0KGS
    Package Size
    1010*571*733mm (Carton)

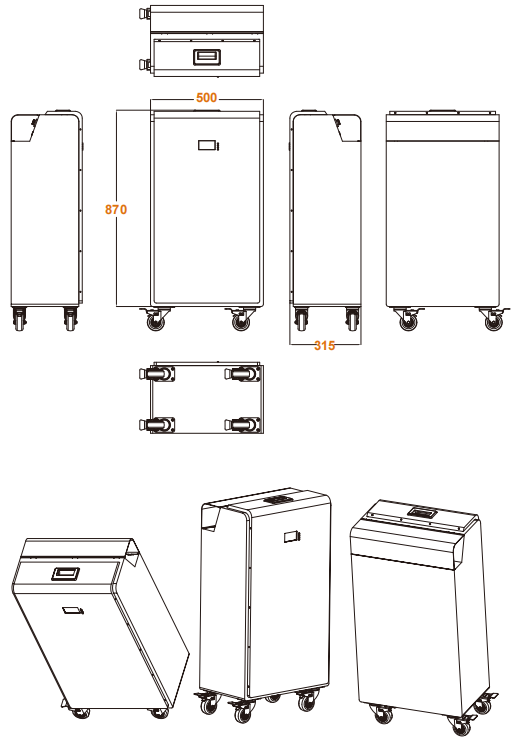

    DIMENSION


    Movable Lithium Battery Pack Home Energy Storage Battery System Customized Solutions Wall Mounted 15kwh 310ah Lifepo4 Grade A Solar


    CAUTIONS

    • Do NOT expose the battery to water
    • Do NOT expose the battery to re & high temperature
    • Do NOT short circuit, crush or disassemble
    • Make sure the inverter's setting matches with the battery's charge & discharge characteristic
    • Store at 50% capacity, and recharge the battery every 3 months
    • The storage area should be clean, cool, dry and ventilated
    • Disconnect the battery from the inverter and shut down the BMS when the battery is in storage status
    • Maximum connection in 16 parallel, no series connection supported



    DIAGRAM OF CURVES
